Basic Information
XSD Axial Linear Motor is made up of coils and magnetic axis. Its structure is similar to ball screw applications (coil movement) and air cylinder applications (magnetic axis movement), which makes it easy to be integrated into other devices for higher speed and better precision.
Due to the compact structure of XSD Axial Linear Motor, it is normally used in SMT P&P Machine or other semiconductor production line.
Why Choose XSD Axial Linear Motor
Compact Structure, Easy Installation
Similar to ball screw/air cylinder – easy integration for higher speed and precision
No Thrust Ripple
Higher positioning precision and dynamic tracking precision
Light Weight Actuator
High acceleration and deceleration, excellent dynamic responsiveness
Big Actuator-Stator Air Gap
Makes installation easy
Technical Specifications
XSD Series – Models: 060D/T/Q, 080D/T/Q, 120D/T/Q, 160D/T/Q, 250D/T/Q/X, 350D/T/Q. Force range 1.1N to 190N continuous.
Performance Parameters (Small Models)
| Performance Parameter | Unit | XSD060D | XSD060T | XSD060Q | XSD080D | XSD080T | XSD080Q | XSD120D | XSD120T | XSD120Q |
|---|---|---|---|---|---|---|---|---|---|---|
| Continuous Force(*1) | N | 1.1 | 1.7 | 2.3 | 1.8 | 2.7 | 3.5 | 4.5 | 6.6 | 8.9 |
| Continuous Current(*1) | Arms | 0.51 | 0.51 | 0.51 | 0.8 | 0.8 | 0.8 | 0.4 | 0.4 | 0.4 |
| Peak Force | N | 5 | 7 | 9 | 7.2 | 10.8 | 14 | 18 | 26.4 | 36 |
| Peak Current | Arms | 2.1 | 2.1 | 2.1 | 3.4 | 3.4 | 3.4 | 1.6 | 1.6 | 1.6 |
| Force Resistant | N/Arms | 2.2 | 3.3 | 4.5 | 2.3 | 3.4 | 4.4 | 11.3 | 16.5 | 22.3 |
| Back EMF | Vpp/m/s | 2.6 | 4.1 | 5.5 | 2.8 | 4.1 | 5.4 | 13.8 | 20.2 | 27.3 |
| Resistance/25ºC(*2) | Ω | 2.9 | 3.44 | 11.3 | 4.4 | 6.7 | 9 | 28.2 | 42.5 | 56.3 |
| Inductance (*3) | mH | 0.7 | 0.89 | 1.18 | 0.7 | 1.3 | 1.7 | 8.8 | 13.2 | 17.3 |
| Pole Distance(N-N) | mm | 24 | 24 | 24 | 30 | 30 | 30 | 48 | 48 | 48 |
| Coil Length(A) | mm | 60 | 40 | 32 | 33.2 | 22.9 | 17.3 | 18.6 | 12.7 | 9.4 |
| Coil Unit Weight | kg | 0.02 | 0.03 | 0.04 | 0.05 | 0.06 | 0.08 | 0.09 | 0.12 | 0.16 |
Performance Parameters (Large Models)
| Performance Parameter | Unit | XSD160D | XSD160T | XSD160Q | XSD250D | XSD250T | XSD250Q | XSD250X | XSD350D | XSD350T | XSD350Q |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Continuous Force(*1) | N | 10 | 15 | 20 | 40 | 60 | 75 | 140 | 104 | 148 | 190 |
| Peak Force | N | 40 | 60 | 80 | 160 | 240 | 300 | 560 | 416 | 592 | 760 |
| Force Resistant | N/Arms | 16.7 | 25 | 33.3 | 30.8 | 46.2 | 57.7 | 58.3 | 69.3 | 98.7 | 70.4 |
| Back EMF | Vpp/m/s | 20.4 | 30.6 | 40.8 | 37.7 | 56.6 | 70.7 | 71.5 | 85 | 120.9 | 86.2 |
| Coil Unit Weight | kg | 0.15 | 0.20 | 0.30 | 0.80 | 1.10 | 1.50 | 1.50 | 1.30 | 1.9 | 2.4 |
(*1) Surface temperature rise 100K. (*2) Mean of U-V,V-W and W-V. (*3) Mean of U-V,V-W and W-V.

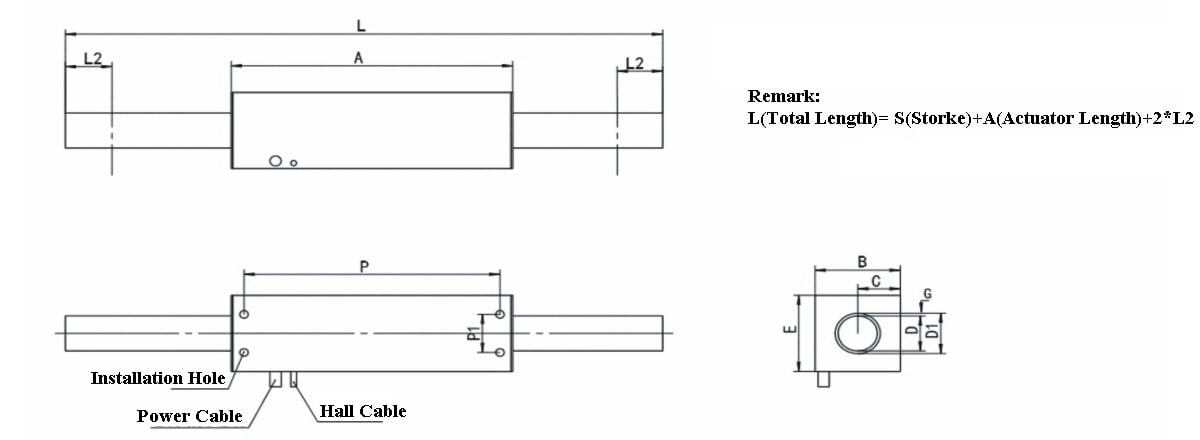

Dimension Specification (Small Models)
| Parameter | XSD060D | XSD080D | XSD120D |
|---|---|---|---|
| Actuator Length A (mm) | 34 | 40 | 54 |
| Actuator Width B (mm) | 15 | 20 | 25 |
| Stator Diameter D (mm) | 6 | 8 | 12 |
| Max Stator Length (mm) | 274 | 390 | 680 |
| Actuator Unit Weight (Kg) | 0.023 | 0.05 | 0.09 |
Dimension Specification (Large Models)
| Parameter | XSD160D | XSD250D | XSD350D |
|---|---|---|---|
| Actuator Length A (mm) | 80 | 120 | 160 |
| Actuator Width B (mm) | 30 | 50 | 60 |
| Stator Diameter D (mm) | 16 | 25 | 35 |
| Max Stator Length (mm) | 1200 | 1700 | 1700 |
| Actuator Unit Weight (Kg) | 0.15 | 0.8 | 1.3 |
Note: Our dimension is compatible with Akribis System.
